| Main Features |
- TV Tuner from 4 to 1,000 MHz, extended CABLE and GSM bands
- Exclusive ROVER Autodiscovery system: automatically recognises and selects analog and digital TV COFDM signals in both measurement and spectrum mode
- Detects and measures MPEG4 HD High Definition programs
- Automatic quality analysis: FAIL-MARG-PASS
- New, ultra-bright TFT with excellent resolution
- Rotational encoder and numerical keyboard
- All measurements, prog, list, A/V PID, settings and picture on one screen
- Auto memory, Manual memory and Data Logger
- Weighs only 1.4 kg,
- 2 to 3-hour battery autonomy
- Supplied with soft bag for transport, mains adaptor and 12V vehicle adaptor
- Upgradeable online (USB-2 socket)
|

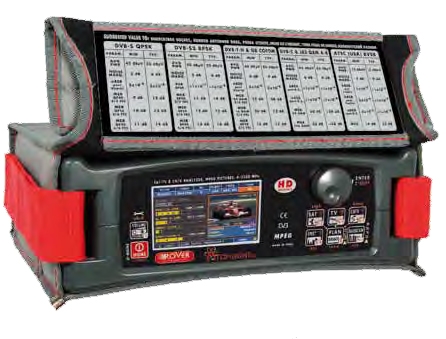

| Mod. ATOM LIGHT-STC DVB-S / DVB-S2 /DVB-T & H / DVB-C & DOCSIS D.S. |
PROFESSIONAL COMBINED ANALYZER, 4–2.250 MHz, FOR SAT QPSK - 8PSK - TV COFDM & CABLE QAM SIGNALS
- Pre-memorized Transponder navigation in all worldwide satellites and in all the worldwide standard TV channel plans
- Assisted satellite dish pointing, double input (DUAL LNB) and Sat Finder functions
- All DiSEqC command and SCR with automatic search
- Constellation visualization, MER, aBER, bBER, EVM, Noise Margin and Level/Power measurements, spectrum analysis
- Available options: with ATSC 8VSB for USA or GB20600-2006 Single and multicarrier for CHINA
- MPEG–2 decoder
- 3.1” 16:9 TFT LED DISPLAY
|
| Code |
Options |
ATOM LIGHT STC |
| ST4-AML-OPT |
AM audio demodulator for French standard SECAM “L” |
✔ |
| TRA-FFEM-NFEM |
”N” female interchangeable input connector |
✔ |
| RIGHTS-SMART-1 |
Authorisation code for the SMART PRO PC management, SW program |
✔ |
