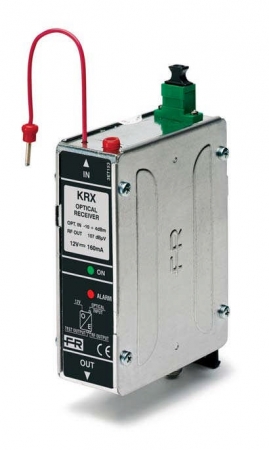

KRX, KSSM Optic Receiver

KRX, KSSM Optic Receiver

KRX optical receiver converts the optical signal into a TV-SAT signal. SC/ACP connectors on the optical interface.

Key Points

Operating temperature: -10 to +55°C
SC/AP connectors on the optical interface

	KRX
Code
Optical Interface	270677
Optical wavelength (nm)	1100±1600
Optical input power (dBm)	-10 to +6
Optical output power (dBm)	-
Optical return loss (dBm)	>55
RF section
RF bandwidth (dB)	47-2150
Flatness TV (dB)	±0.5
Flatness SAT (dB)	±1
Link flatness (dB)	±2.5
RF input level dBμV	-
RF output level dBμV	94@optical input power ≥ 2dB
RF TEST output level	RF output level -25dB
RF return loss dB	>12
Input impedance Ohm	-
Output impedance Ohm	75
RF connector	F female
Optical connector	SC/APC single mode
Operating voltage VDC	12
Power consumption	2
Dimensions (L.×H.×D.) mm	32x89x126
Operating Temperature °C	-10 to +55

Code	Item	Packaging	Quantity	Dimension	Net Weight	Total Weight
Code			Pcs	mm	Kg	Kg
270677	KRX	Single Package	1	235x165x45	0,430	0,460

Signal to noise Ratio
