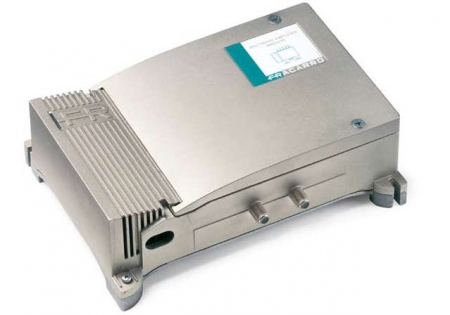

UBB (ultra broadband) line amplifiers with return path. To be used as the final amplifier before wall outlets. Normally used to amplify the signals after an optical link. All adjustments are internally located under the die cast cover secured with safety screws to prevent unauthorised access. Packaging 1 pc.
Key Points
- Operating temperature: -10 to +55°C.
- Gain and slope adjustment in TV and SAT band
- Female F connectors
- Passive or active return path, switchable by the installer
| |
AMP9763 |
| Code |
235052 |
| Bandwidth |
MHz |
5-30 |
47-862 |
950-2400 |
| Gain |
dB |
25 |
40 |
40 |
| Flatness |
dB |
±2 |
±2 |
±2 |
| Gain adjustment |
dB |
- |
0-20 |
0-20 |
| Slope adjustment |
dB |
- |
0-20 |
0-20 |
| Max. output level |
|
|
|
|
| IM3-60 dB 3 unequal tones |
dBμV |
100 |
120 |
- |
| IM3-54 dB 2 unequal tones |
dBμV |
100 |
120 |
- |
| IM3-52 dB 3 equal tones |
dBμV |
98 |
118 |
- |
| IM3-60 dB 3 equal tones |
dBμV |
94 |
114 |
- |
| IM3-60 dB 2 equal tones |
dBμV |
97 |
117 |
- |
| IM2-60 dB 2 equal tones |
dBμV |
95 |
115 |
- |
| IM2-35 equal tones |
dBμV |
- |
- |
125 |
| General Parameters |
|
|
|
|
| Noise figure |
dB |
3 |
8 |
10 |
| Conectors |
|
|
F |
|
| Impedance |
Ohm |
|
75 |
|
| Test point |
dB |
|
-30 |
|
| Mains voltage |
Vac, Hz |
|
220-240, 50-60 |
|
| Power consumption |
W |
|
16 |
|
| Protection index |
|
|
IP20 |
|
| Dimensions (L.×H.×D.) |
mm |
|
194x143x63 |
|
| Operating Temperature |
°C |
|
-10 to +55 |
|
| |
|
|
|
|
