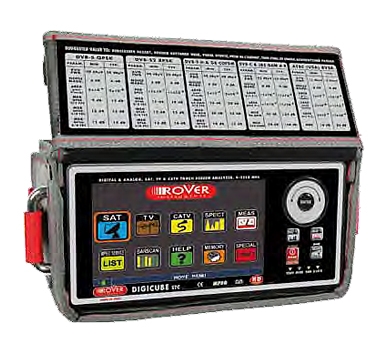

DIGICUBE STC Series
DIGICUBE STC Series
DIGICUBE STC Series
Main Features
  • TV Tuner from 4 to 1.000 MHz, extended CABLE and GSM bands
  • Exclusive ROVER Autodiscovery system: automatically recognises and selects analog and digital TV COFDM signals in both measurement and spectrum mode
  • Detects and measures MPEG4 HD High Definition programs
  • Automatic quality analysis: FAIL-MARG-PASS
  • New, ultra-bright, color, 6.5”, 16:9, TFT touch screen with excellent resolution
  • Rotational cap-touch encoder
  • All measurements, prog. list, A/V PID, settings and picture on one screen
  • Auto memory, Manual memory and Data Logger
  • Weighs only 2,1 kg, H 11.5 x L 24.5 x D 18.0 cm
  • 2 to 3-hour battery autonomy
  • Supplied with soft bag for transport, mains adaptor and 12V vehicle adaptor
  • Upgradeable online (USB-2 socket)
  • Bluetooth communication (optional)



Mod. DIGICUBE-STC DVB-S / DVB-S2 /DVB-T e H / DVB-C & DOCSIS D.S.

PROFESSIONAL COMBINED ANALYZER, 4–2.250 MHz, FOR SAT QPSK - 8PSK - TV COFDM & CABLE QAM SIGNALS

  • Pre-memorized Transponder navigation in all worldwide satellites and in all the worldwide standard TV channel plans
  • Assisted satellite dish pointing, double input (DUAL LNB) and Sat Finder functions
  • All DiSEqC command and SCR with automatic search
  • Constellation visualization, MER, aBER, bBER, EVM, Noise Margin and Level/Power measurements, spectrum analysis
  • Available options: with ATSC 8VSB for USA or GB20600-2006 Single and multicarrier for CHINA
  • MPEG-2 decoder, upgradeable HW available for MPEG-4 HD
  • Dual Touchscreen TFT LED display: 6.5” 16:9, resistive and capacitive



Code Options DIGICUBE STC
EXA-DCAS-OPT Direct Conditional Access System
EXA-AML-OPT AM audio demodulator for French standard SECAM “L”
RIGHTS-SMART-1 Authorisation code for the SMART PRO PC management, SW program
BLUETOOTH HW, for Bluetooth communications (optional customised SW)



Click here to download specifications
