SAT1160BV 75ohm RG11 Coaxial Cable
SAT1160BV 75ohm RG11 Coaxial Cable
@ Frequency MHz dB/100 feet Maximum dB/100 meters Maximum
5 MHz 0.38 dB 1.25 dB
55 MHz 0.96 dB 3.15 dB
83 MHz 1.18 dB 3.87 dB
187 MHz 1.75 dB 5.74 dB
211 MHz 1.90 dB 6.23 dB
250 MHz 2.05 dB 6.72 dB
300 MHz 2.25 dB 7.38 dB
350 MHz 2.42 dB 7.94 dB
400 MHz 2.60 dB 8.53 dB
450 MHz 2.75 dB 9.02 dB
500 MHz 2.90 dB 9.51 dB
550 MHz 3.04 dB 9.97 dB
600 MHz 3.18 dB 10.43 dB
750 MHz 3.65 dB 11.97 dB
865 MHz 3.98 dB 13.05 dB
1000 MHz 4.35 dB 14.27 dB
1200 MHz 4.77 dB 15.65 dB
1450 MHz 5.30 dB 17.39 dB
1800 MHz 6.00 dB 19.69 dB
2200 MHz 6.75 dB 22.14 dB
2400 MHz 7.11 dB 23.32 dB
2800 MHz 7.78 dB 25.53 dB
3000 MHz 8.11 dB 26.60 dB

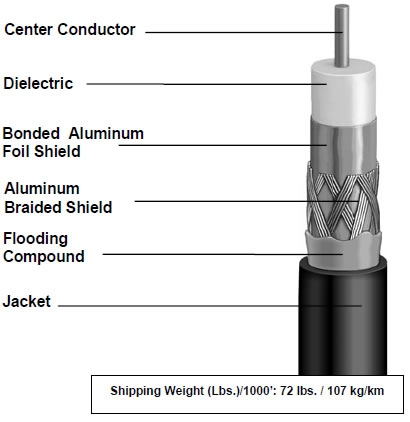

PRODUCT DESCRIPTON SHIELD
Bonded Foil, 60 % Braid, PVC Jacket

• 1st Shield : Aluminium-Polypropylene-Aluminium
  Laminated Tape With Overlap Bonded To The
  Dielectric
  Nominal Diameter Over Tape:0.287"(7.29mm)
• 2ND Shield : 34 AWG Aluminium Braid Wire
   60% Coverage

CENTER CONDUCTOR JACKET
• 14 Awg Copper Covered Steel
• Nominal Diameter: 0.064"(1.63mm)		 • PVC
•Nominal Diameter Over Jacket: 0.395"(10.03mm)
• Nominal Jacket Thickness: 0.042"(1.07mm)

DIELECTRIC ELECTRICAL PROPERTIES
• Gas Expanded Polyethylene
• Nominal Diameter:: 0.064" (1.63mm)		 • Impedance : 75.0 +/- 3.0 Ohms
• Velocity of Propagation : 85.0% Nominal
• Structural Return Loss :
   5 MHz to 1000 MHz ≥ 20 dB
   1000 to 3000 MHz ≥ 15 dB
• Nominal Dc Resistance (Ohms/km):
   Center Conductor: 8.5
   Outer Conductor: 22.5
• Attenuation : @ 68oF (20oC)

CORROSSION RESISTANT TREATMENT
Amorphous polypropylene flooding compound

 Click here to download specifications
